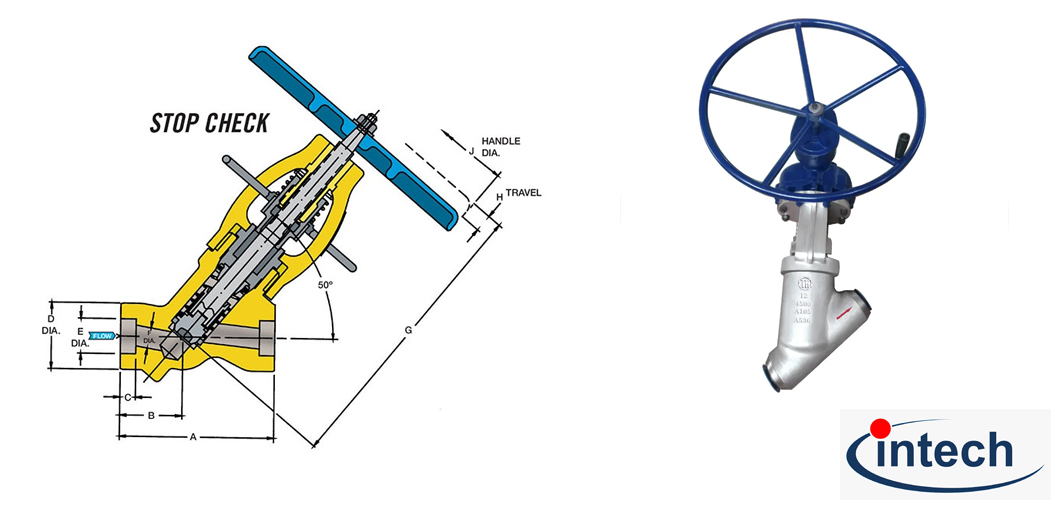

Angle Stop Check Valve Pressure Seal by Intechvalve – combined isolation and backflow prevention with direction change for high pressure services

What Is an Angle Stop Check Valve Pressure Seal? – Intechvalve explains

At Intechvalve, we define an angle stop check valve with pressure seal bonnet as a specialized multi-functional valve that combines the features of a stop valve (globe valve) and a check valve in a single body with an angle pattern configuration where flow enters horizontally and exits vertically downward (or vice versa). This valve serves two distinct purposes: it can be manually closed to stop flow completely (stop function), and it automatically prevents backflow when in the open position (check function). The angle pattern design eliminates the need for a separate pipe elbow, reducing installation costs, space requirements, and pressure drop. The pressure seal bonnet design uses internal pressure to enhance the seal – as line pressure increases, the sealing force on the gasket also increases, creating a tighter seal. This self sealing design allows Intechvalve angle stop check valves to be lighter, more compact, and more economical than bolted bonnet valves for the same pressure class while providing superior sealing performance under high pressure conditions.

Key Features and Value Propositions of Intechvalve Angle Stop Check Valves Pressure Seal

Dual Functionality: I design Intechvalve angle stop check valves to serve two critical functions in a single body – positive isolation when manually closed, and automatic backflow prevention when open. This eliminates the need for separate stop and check valves, reducing installation costs, space requirements, and potential leak points.

Angle Pattern Body Design: The angle pattern configuration allows flow to enter horizontally and exit vertically downward, eliminating the need for a separate pipe elbow. Intechvalve angle stop check valves save installation space, reduce pressure drop, and simplify piping layouts.

Self Sealing Pressure Seal Bonnet: The pressure seal bonnet design uses internal pressure to enhance the seal. Higher line pressure creates a tighter seal, ensuring leak free operation even under the most demanding high pressure conditions.

High Pressure Capability: Intechvalve angle stop check valves with pressure seal bonnets are designed for high pressure services from Class 600 up to Class 4500, handling pressures that would require massive flanges and numerous bolts in conventional designs.

High Temperature Service: With appropriate material selection, Intechvalve angle stop check valves handle temperatures up to 650 degrees Celsius, making them ideal for power generation and high temperature process applications.

Controlled Closing: The stop check design allows the disc to be held open mechanically, preventing chattering and ensuring stable operation under varying flow conditions.

Self Draining Capability: When installed in vertical downward flow orientation, Intechvalve angle stop check valves are self draining, making them ideal for drain and vent services where complete drainage is required.

Renewable Seat and Disc: Intechvalve angle stop check valves feature renewable seat rings and disc faces, allowing easy maintenance and extended service life without replacing the entire valve.

Wide Industry Use: From power generation (boiler feedwater, main steam drain, turbine bypass, high pressure heater drains), to oil and gas production, refining, and petrochemical processing, Intechvalve angle stop check valves with pressure seal bonnets provide reliable isolation and backflow prevention in critical high pressure services where piping direction changes are required.

How It Works – Principle of Operation by Intechvalve

An Intechvalve angle stop check valve with pressure seal bonnet operates using a disc that is connected to a stem, allowing manual positioning, but also free to move independently when the stem is retracted. The valve has two modes of operation:

Stop Valve Mode (Manual Isolation): When the handwheel or actuator is turned clockwise, the stem lowers the disc onto the seat, providing positive mechanical shut off regardless of flow conditions. This isolates the downstream piping completely.

Check Valve Mode (Automatic Backflow Prevention): When the stem is fully retracted (valve "open"), the disc is free to rise and fall with flow conditions. Forward flow lifts the disc off the seat, allowing flow through the valve. If flow stops or reverses, the disc drops back onto the seat automatically, preventing backflow. The disc is guided to ensure stable operation without chattering.

Angle Pattern Flow Path: The body is designed with an angle configuration where flow enters horizontally and exits vertically downward (or the reverse). The seat is oriented at the intersection of the two flow paths. This design allows the valve to serve as both a flow control device and a direction change fitting, eliminating the need for a separate pipe elbow.

The pressure seal bonnet operates on the same principle as other pressure seal valves – internal pressure acts on the bottom of the bonnet, forcing it upward and compressing the gasket against the body's tapered sealing surface, creating a tighter seal as pressure increases.

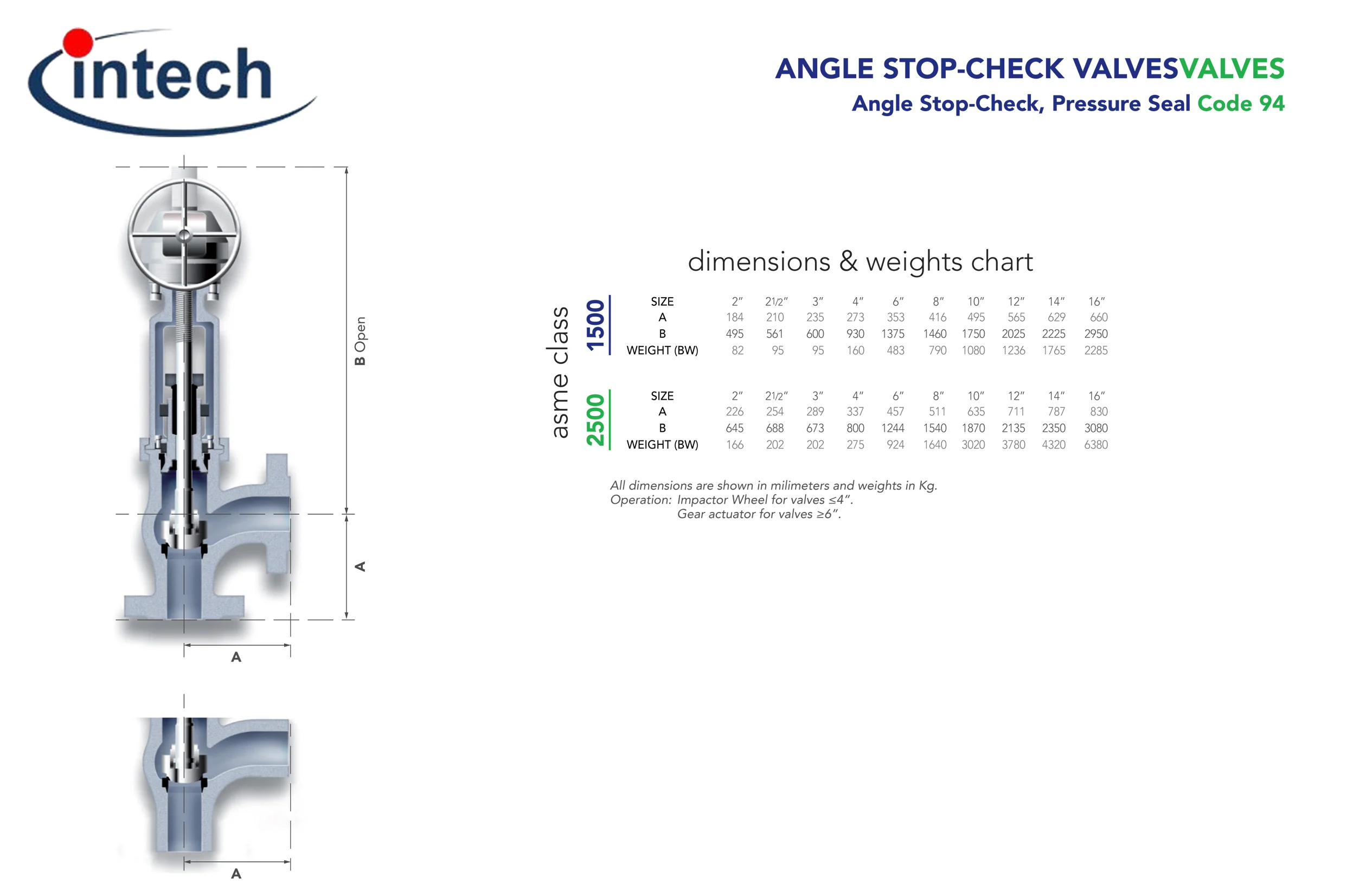

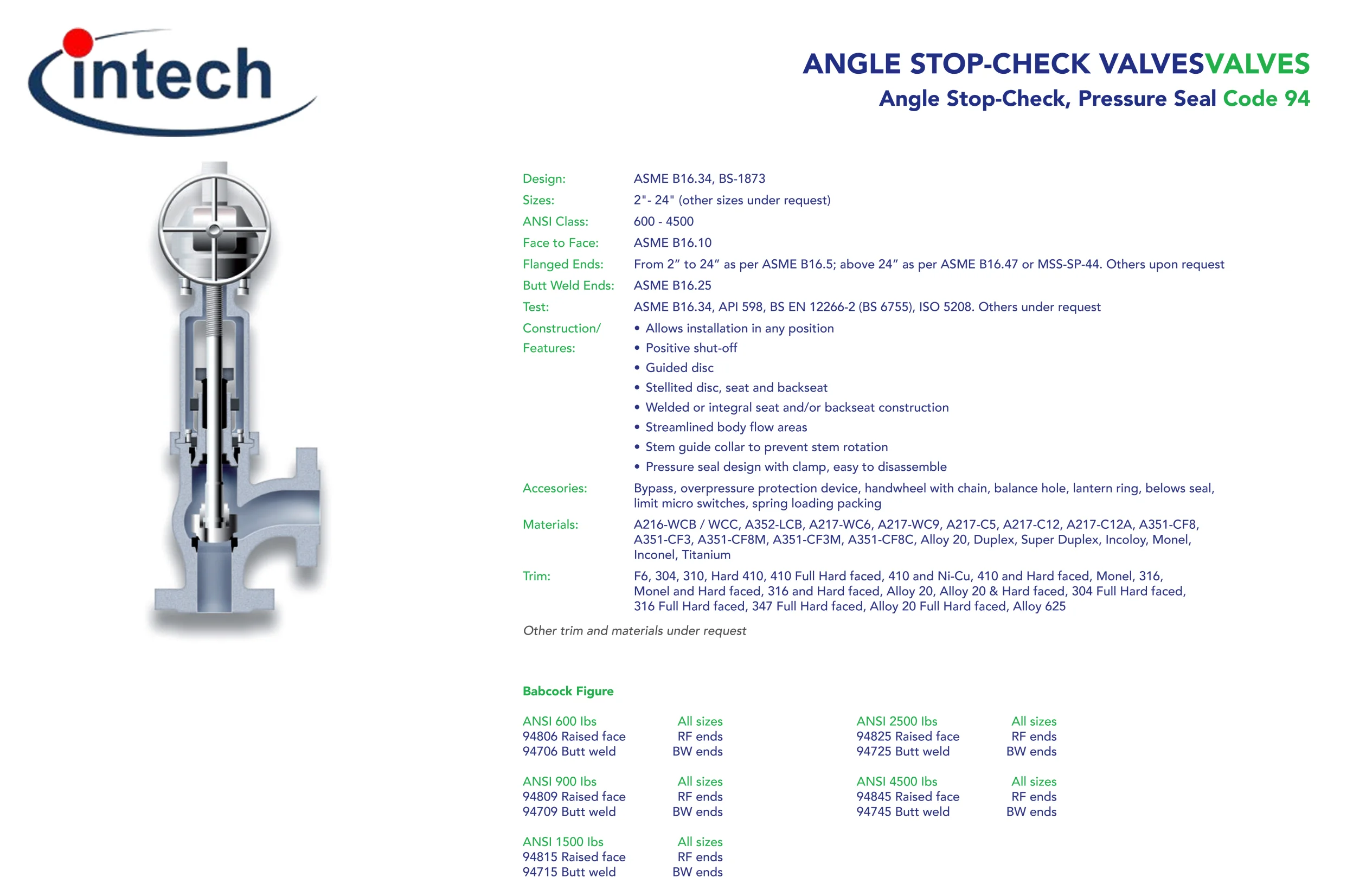

Typical Technical Specifications – Intechvalve Angle Stop Check Valves Pressure Seal

Common Types of Angle Stop Check Valves manufactured by Intechvalve

• Standard Angle Stop Check Valve Pressure Seal — The most common design for high pressure applications requiring both isolation and backflow prevention with a 90-degree flow direction change. Intechvalve standard angle stop check valves feature a guided disc design for stable operation in both modes.
• Angle Stop Check Valve with Integral Bypass — Features an integral bypass connection for pressure equalization before opening, reducing operating torque and preventing seat damage. Intechvalve offers bypass options for large valves and high pressure applications.
• Angle Stop Check Valve for Boiler Feedwater — Specifically designed for boiler feedwater recirculation, high pressure heater drains, and startup systems in power plants, with materials and testing to meet power industry requirements.
• Angle Stop Check Valve for Main Steam Drain — Designed for main steam drain and vent services in thermal power plants, handling high temperature steam with rapid thermal cycling. The angle pattern allows direct connection to drain headers.
• Angle Stop Check Valve for Turbine Bypass — Specialized design for turbine bypass systems, with characteristics optimized for the rapid response and high pressure drop requirements of bypass service.
• Angle Stop Check Valve for High Pressure Heater Drains — Optimized for the specific requirements of high pressure feedwater heater drain systems, with materials selected for the erosive conditions of flashing condensate.
• Angle Stop Check Valve with Soft Seat — For applications requiring bubble tight shut off, Intechvalve offers angle stop check valves with soft seat inserts for the stop function while maintaining metal seat for check function.

Angle Pattern vs Y Pattern vs T Pattern – Intechvalve Selection Guide

• Angle Stop Check Valve from Intechvalve: Features a 90-degree flow path, eliminating the need for a separate pipe elbow. Ideal for applications where piping direction changes are required, such as boiler feedwater connections to headers, drain systems, and equipment nozzles. Provides lower pressure drop than T pattern plus an elbow.
• Y Stop Check Valve from Intechvalve: Features a Y pattern body with angled seat, providing the lowest pressure drop of all stop check designs. Ideal for high velocity services where pressure drop must be minimized, such as main steam and turbine bypass.
• T Pattern Stop Check Valve from Intechvalve: Features a traditional globe valve pattern with perpendicular inlet and outlet. Highest pressure drop but simplest construction. Suitable for general services where pressure drop is not critical.
• Intechvalve Recommendation: When a 90-degree piping direction change is required, Intechvalve angle stop check valves eliminate the need for a separate elbow, reducing installation cost, space requirements, and overall pressure drop.

Applications for Intechvalve Angle Stop Check Valves Pressure Seal

• Power generation – Intechvalve angle stop check valves are essential components in thermal power plants, used for boiler feedwater connections to headers, high pressure heater drains, main steam drain systems, turbine bypass, and startup systems where both isolation and backflow prevention are required with a 90-degree flow direction change.
• Boiler systems – Feedwater recirculation, startup vents, drain valves, and boiler blowdown systems use Intechvalve angle stop check valves for reliable dual function service at high pressures and temperatures.
• High pressure heater drains – Angle stop check valves are ideal for high pressure feedwater heater drain applications, where condensate must be drained downward to lower pressure heaters or the deaerator.
• Oil and gas production – High pressure wells, production manifolds, and injection systems use Intechvalve angle stop check valves where piping direction changes and dual function are required.
• Refining industry – Hydrocracking units, catalytic crackers, and high pressure hydrotreaters require Intechvalve angle stop check valves for process lines needing both isolation and backflow prevention with direction changes.
• Petrochemical processing – High pressure processes including ammonia synthesis, methanol production, and ethylene manufacturing use Intechvalve angle stop check valves for critical services with direction changes.
• Combined cycle power plants – Heat recovery steam generator (HRSG) drain and vent systems, steam turbine bypass, and feedwater systems use Intechvalve angle stop check valves.

At Intechvalve, we specialize in multi-functional high pressure flow control solutions. Our angle stop check valves with pressure seal bonnets are engineered to provide both positive isolation and automatic backflow prevention in a single, compact valve body that also changes flow direction, eliminating the need for separate pipe elbows and reducing installation costs. The self sealing bonnet ensures leak free operation in the most demanding high pressure and high temperature applications.
