Gate Valve by Intechvalve – precision isolation

What Is a Gate Valve? – Intechvalve explains

At Intechvalve, we define a gate valve as a mechanical flow control device that uses a flat or wedge shaped barrier, known as the gate, to start or stop fluid, liquid or gas, movement in a pipeline. We engineer it primarily for on/off isolation service, not throttling. The principle is simple, full open equals free flow, and full closed equals tight shut off. That is the philosophy behind every Intechvalve gate valve we manufacture.

Key Features and Value Propositions of Intechvalve Gate Valves

Unobstructed Flow: When you fully open an Intechvalve gate valve, the fluid sees minimal resistance, reducing pressure drop dramatically. We guarantee this performance.

Bidirectional Seal: I design our gate valves to work perfectly in either flow direction, so you never worry about installation orientation with Intechvalve.

Tight Shut Off: At Intechvalve, we deliver excellent isolation when the valve is fully closed, thanks to precision machined seats and wedges.

Low Torque Operation: Especially in our rising stem or actuated versions, Intechvalve gate valves require low operating torque, ensuring easy manual or automated control.

Simple Mechanics: We keep maintenance simple with replaceable parts. Our gate valves from Intechvalve are built to be serviced, not scrapped.

Versatile Actuation: Intechvalve offers handwheel, gear, electric, pneumatic, or hydraulic actuation to match your plant requirements.

Wide Industry Use: From water, oil and gas, petrochemical, power, mining, to treatment plants, Intechvalve gate valves are trusted worldwide.

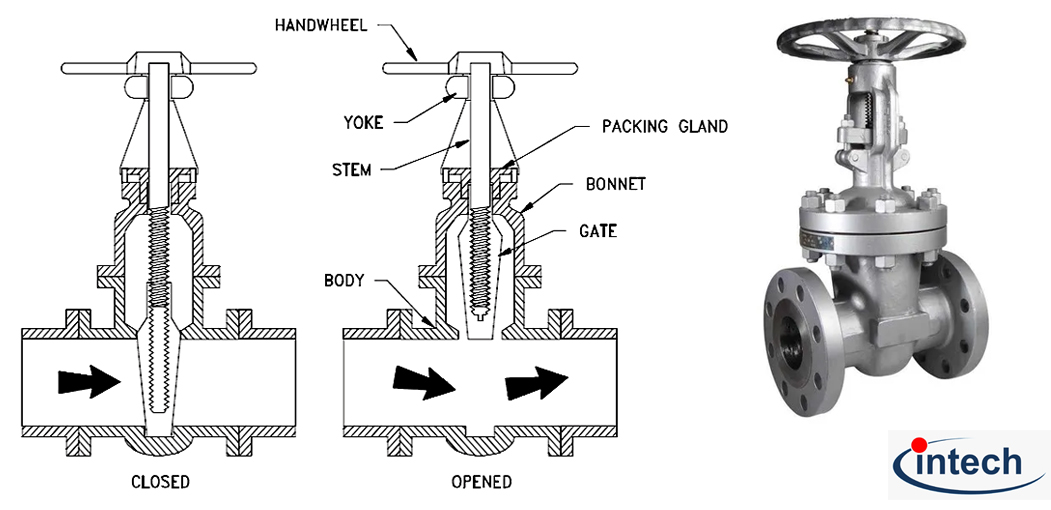

How It Works – Principle of Operation by Intechvalve

A handwheel or actuator rotates a threaded stem. That motion lifts or lowers the gate. When the gate lifts completely, the pathway is clear. When it descends, it physically blocks flow. This multi turn design, which we at Intechvalve refine, also helps reduce water hammer compared to rapid acting valves, a detail we care about for system protection.

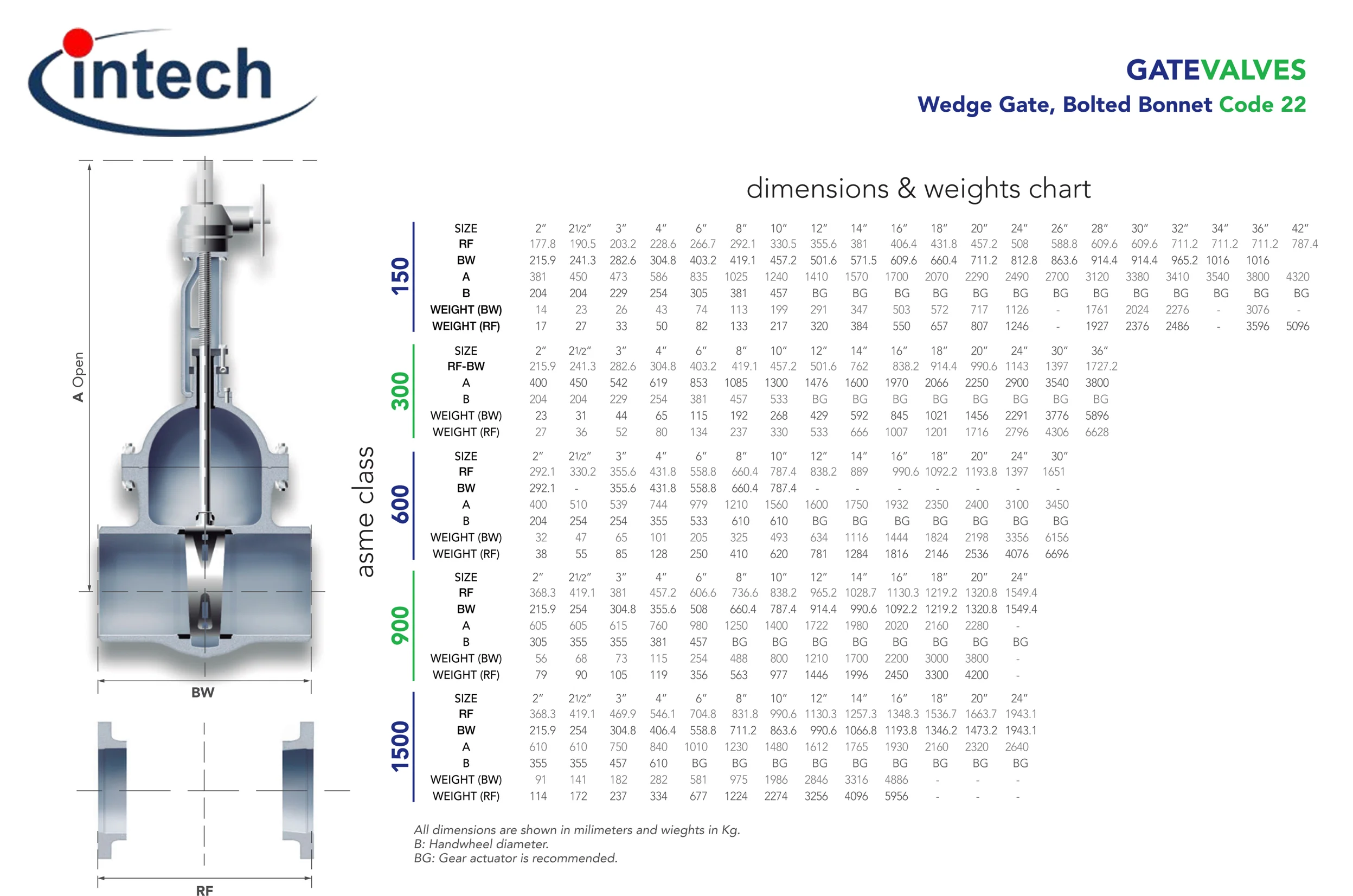

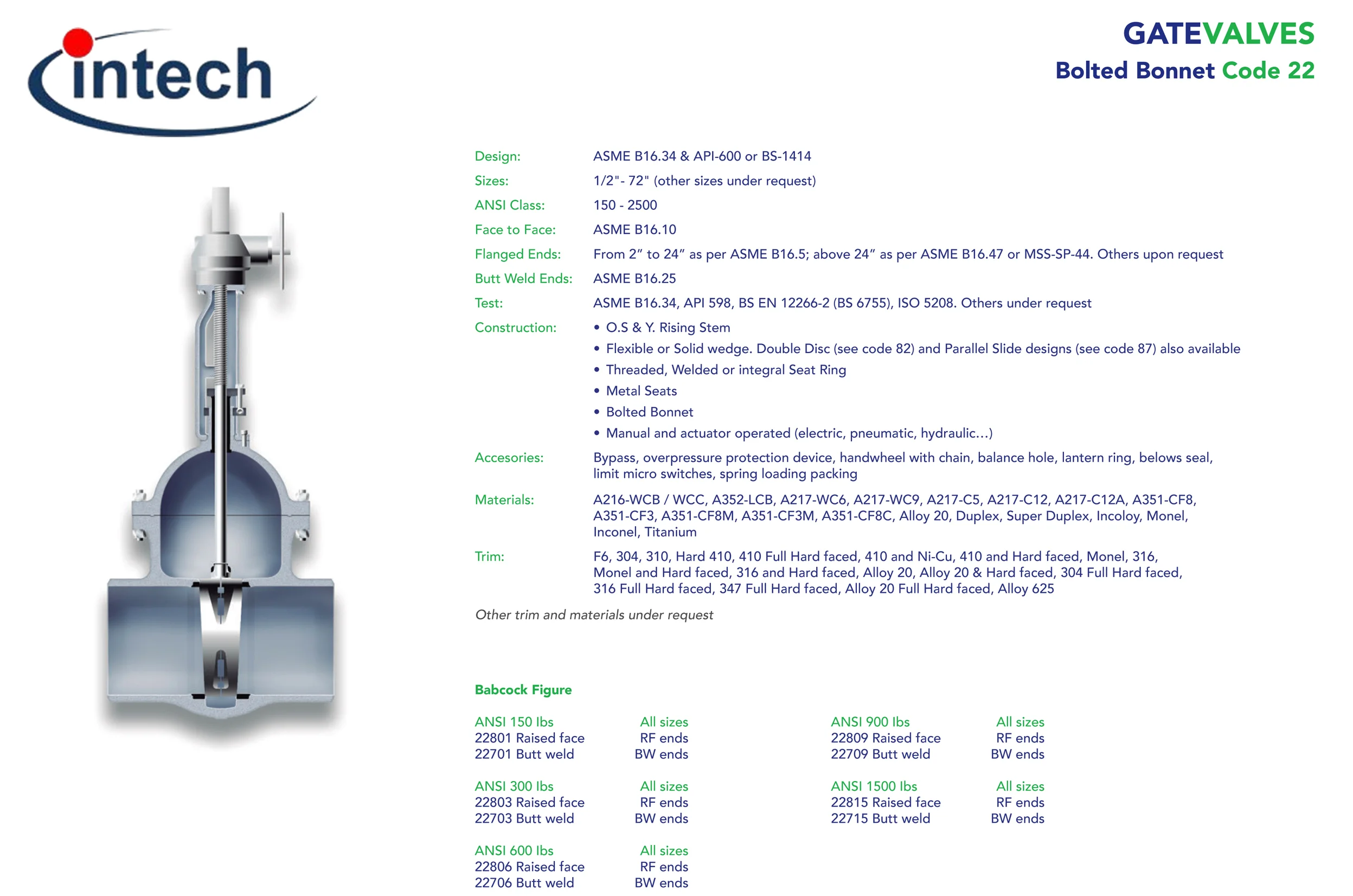

Typical Technical Specifications – Intechvalve Gate Valves

Common Types of Gate Valves manufactured by Intechvalve

• Rising Stem Gate Valve — Shows open or closed position visibly. Intechvalve makes them rugged and reliable.
• Non Rising Stem Gate Valve — Best where vertical space is limited. Our Intechvalve design saves space without compromising performance.
• Solid Wedge Gate Valve — Simple, rugged design. This is a bestseller from Intechvalve for general services.
• Flexible Wedge Gate Valve — Compensates for thermal expansion. We engineer it at Intechvalve for high temperature stability.
• Split Disc or Parallel Gate Valve — Good for corrosive environments. Intechvalve offers this variant for demanding applications.

Use Cases for Intechvalve Gate Valves

• Pipeline isolation for maintenance and safety – Intechvalve valves provide positive shut off.
• Water and wastewater networks – Intechvalve gate valves are widely used in municipal and industrial water systems.
• Oil and gas transmission and refining – We manufacture Intechvalve gate valves to API standards for hydrocarbon service.
• Steam and high temperature services – Our material selection at Intechvalve ensures long life in thermal plants.
• Industrial process lines – Intechvalve gate valves excel in on/off applications with minimal pressure loss. Note that they are not intended for flow throttling or frequent modulation.

At Intechvalve, we focus on isolation. Our gate valves are the strong suit for on/off control with minimal pressure loss across the valve.
