Swing Check Valve by Intechvalve preventing backflow automatically

What Is a Swing Check Valve? – Intechvalve explains

At Intechvalve, we define a swing check valve as an automatic valve that allows fluid to flow in one direction and automatically prevents backflow or reverse flow. It operates entirely on the principle of gravity and fluid pressure, with no manual or external actuation required. The valve consists of a hinged disc that swings away from the seat to permit forward flow and swings back onto the seat to seal against reverse flow. Every Intechvalve swing check valve is engineered to protect pumps, compressors, turbines, and other critical equipment from the damaging effects of reverse flow and water hammer.

Key Features and Value Propositions of Intechvalve Swing Check Valves

Automatic Operation: I design Intechvalve swing check valves to operate automatically based on flow direction, requiring no external power, controls, or operator intervention.

Full Bore Flow: When fully open, the disc swings completely out of the flow path, providing unobstructed flow with minimal pressure drop, similar to a gate valve. Intechvalve swing check valves offer excellent flow characteristics.

Bidirectional Installation Options: While the valve itself is unidirectional, Intechvalve offers models suitable for horizontal or vertical installation with upward flow, providing installation flexibility.

Low Maintenance: We engineer Intechvalve swing check valves with simple mechanics, few moving parts, and robust construction, resulting in long service life and minimal maintenance requirements.

Quick Response to Reverse Flow: The hinged disc design responds rapidly to flow reversal, closing quickly to prevent backflow and protect downstream equipment.

Versatile Trim Options: Intechvalve offers various disc and seat materials, including renewable seat rings and hard facings for extended service life in demanding applications.

Wide Industry Use: From water distribution, wastewater treatment, oil and gas pipelines, petrochemical plants, power generation, to marine and HVAC systems, Intechvalve swing check valves provide reliable backflow prevention.

How It Works – Principle of Operation by Intechvalve

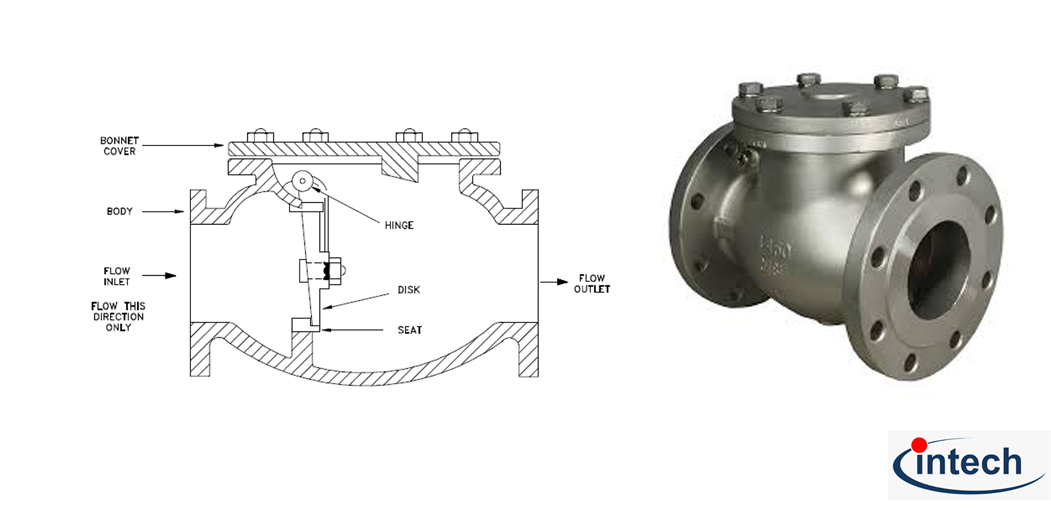

An Intechvalve swing check valve operates using a disc that is hinged at the top. Under forward flow conditions, fluid pressure pushes the disc open, swinging it upward and inward to allow flow through the valve. When forward flow stops or reverses, gravity and reverse flow pressure cause the disc to swing back onto the seat, creating a tight seal that prevents backflow. The valve closes automatically and instantaneously when flow direction reverses. For vertical installations with upward flow, gravity assists the disc to close when flow stops. This simple yet highly effective design ensures reliable protection against reverse flow.

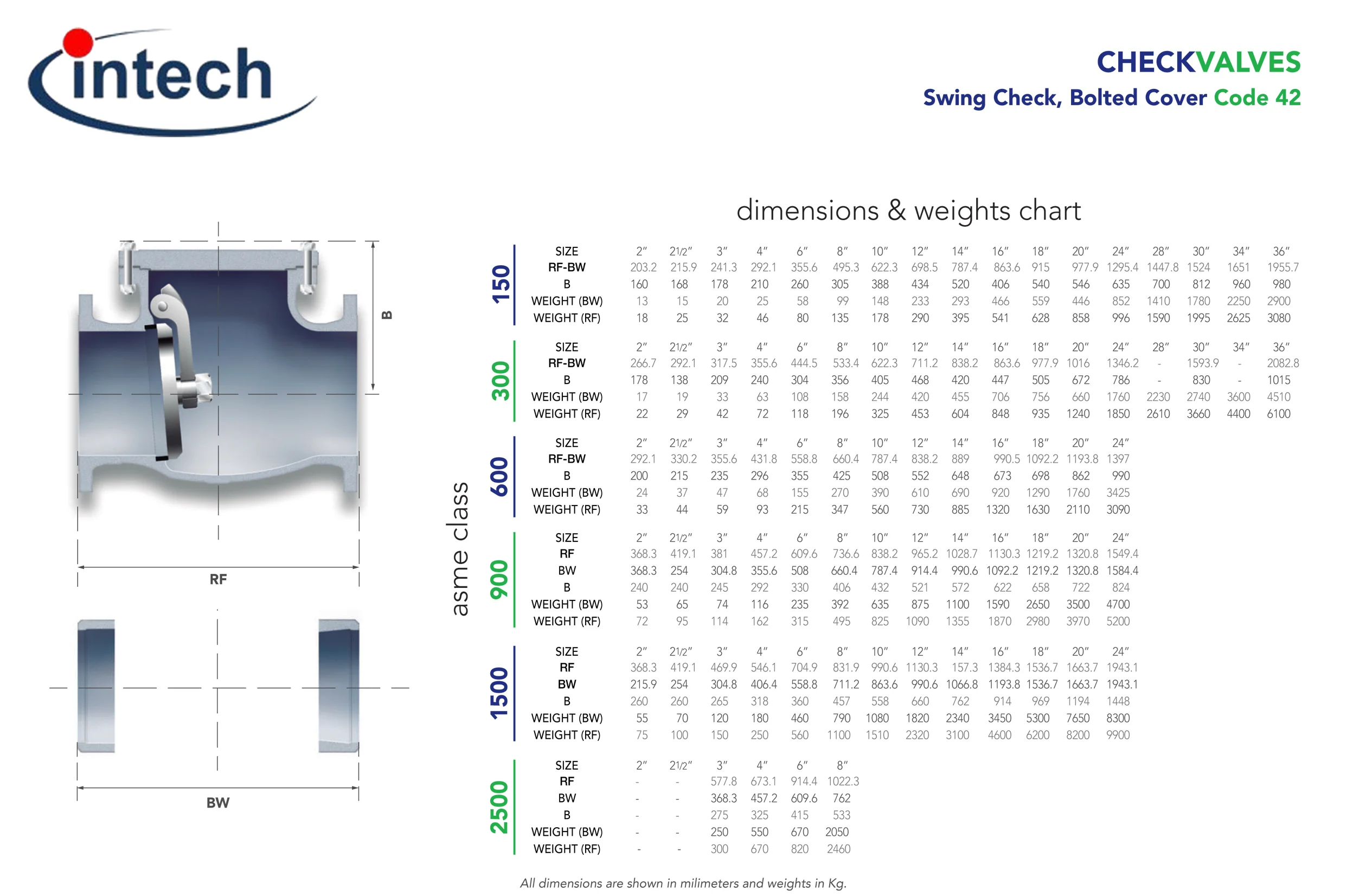

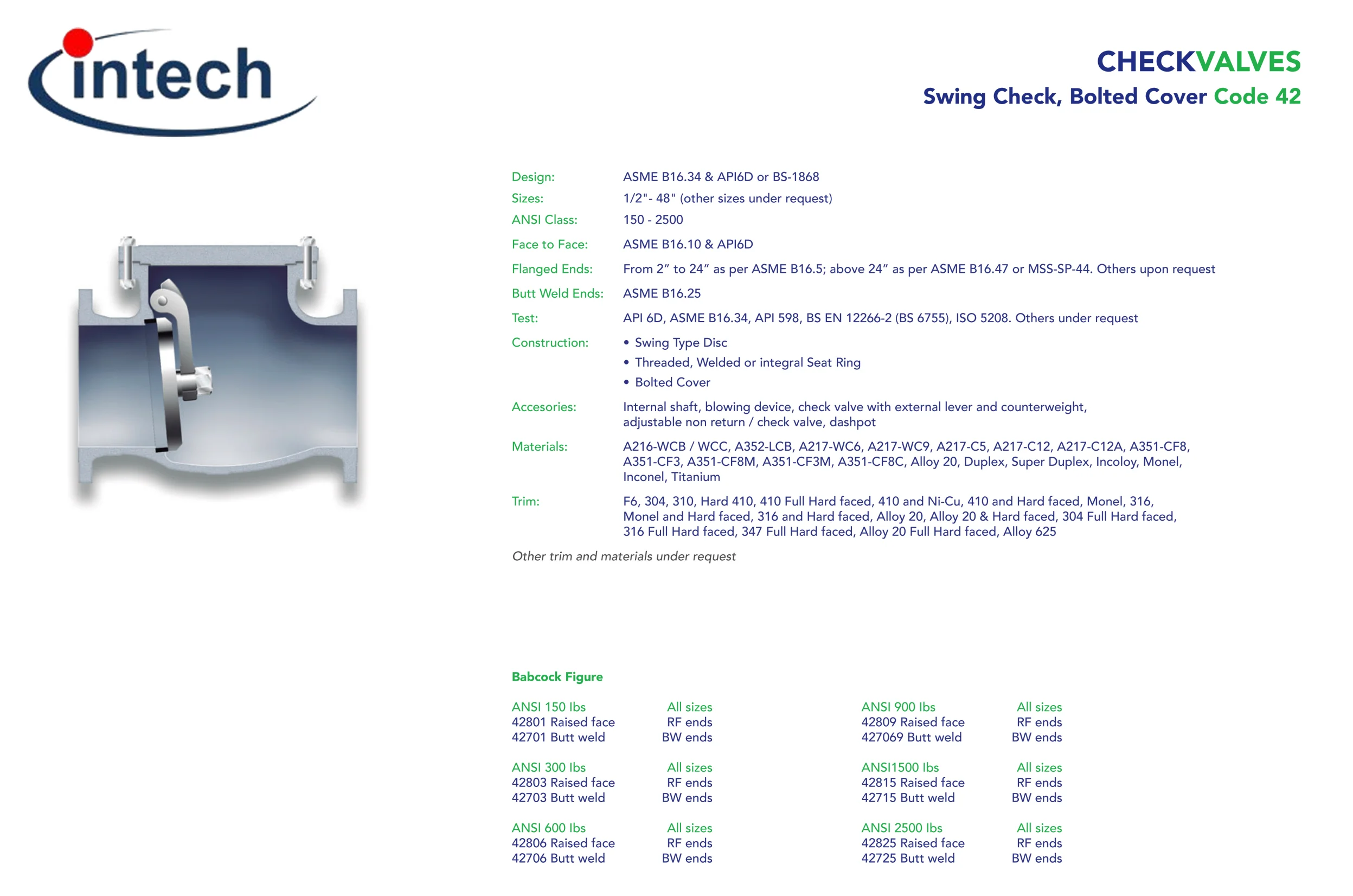

Typical Technical Specifications – Intechvalve Swing Check Valves

Common Types of Swing Check Valves manufactured by Intechvalve

• Standard Swing Check Valve (Flanged Ends) — Most common design for general service. Intechvalve flanged swing check valves are widely used in water, oil, and gas applications.
• Wafer Swing Check Valve — Compact design that fits between flanges, saving space and weight. Intechvalve wafer swing check valves are ideal for tight installations.
• Swing Check Valve with Lever and Weight — Assisted closing mechanism for faster response and reduced water hammer. Intechvalve offers lever and weight options for critical applications.
• Swing Check Valve with Lever and Spring — Spring assisted closing for installations where gravity alone may not provide rapid closure. Available from Intechvalve for vertical or sloped lines.
• Metal Seated Swing Check Valve — For high temperature and high pressure services. Intechvalve metal seated valves offer durability in severe conditions.
• Soft Seated Swing Check Valve — With renewable elastomer or PTFE seat for bubble tight shut off. Intechvalve soft seated valves are used in gas and critical sealing applications.

Disc and Seat Options from Intechvalve

• Renewable Seat Rings — Intechvalve swing check valves feature replaceable seat rings for easy maintenance and extended valve life.
• Hard Faced Disc and Seat — Stellite or other hard facing materials for erosive and high temperature services. Intechvalve offers hard faced trim for demanding applications.
• PTFE or Elastomer Seated Disc — For bubble tight shut off in gas and low pressure applications. Available from Intechvalve for critical sealing requirements.
• Non Slam Disc Design — Special disc geometry to reduce slamming and water hammer. Intechvalve engineers non slam options for surge sensitive systems.

Use Cases for Intechvalve Swing Check Valves

• Discharge side of pumps – Intechvalve swing check valves prevent reverse flow when pumps stop, protecting pump internals from damage.
• Compressor discharge lines – Our check valves prevent backflow and maintain system pressure when compressors cycle.
• Pipeline systems – Intechvalve swing check valves prevent backflow in transmission and distribution pipelines.
• Steam systems – Protect turbines and steam equipment from reverse steam flow with Intechvalve check valves.
• Water and wastewater treatment – Prevent contamination from reverse flow in treatment processes with Intechvalve swing check valves.
• Cooling water systems – Protect heat exchangers and cooling towers from reverse flow damage.
• Fire protection systems – Intechvalve swing check valves ensure unidirectional flow in fire water networks.
• Oil and gas gathering lines – Reliable backflow prevention in hydrocarbon transfer systems.

At Intechvalve, we specialize in automatic flow control. Our swing check valves are engineered to provide reliable, maintenance free backflow prevention, protecting your valuable equipment and ensuring system integrity.
