What Is a Ball Valve? – Intechvalve explains

At Intechvalve, we define a ball valve as a quarter turn rotational motion valve that uses a hollow, perforated, and pivoting ball to control flow through a pipeline. The ball has a bore through its center, and when the valve is open, the bore aligns with the flow direction, allowing fluid to pass through. When closed, the ball rotates 90 degrees, and the solid part of the ball blocks the flow path. Ball valves are known for their excellent sealing capabilities, durability, and reliable performance. Every Intechvalve ball valve is precision engineered for tight shut off, smooth operation, and long service life across a wide range of industrial applications.

Key Features and Value Propositions of Intechvalve Ball Valves

Quarter Turn Operation: I design Intechvalve ball valves for quick 90 degree operation, allowing rapid opening and closing with minimal effort and actuator torque requirements.

Tight Shut Off Capability: The ball pressing against resilient or metal seats provides bubble tight shut off, even after long periods of inactivity. Intechvalve ball valves offer zero leakage performance.

Full Bore Design Option: Many Intechvalve ball valves feature full bore design where the ball bore diameter matches the pipeline inner diameter, resulting in minimal pressure drop and unobstructed flow for pigging operations.

Bi directional Sealing: Intechvalve ball valves provide effective sealing in both flow directions, offering installation flexibility and reliable isolation regardless of flow direction.

Low Operating Torque: Precision machined balls and low friction seat materials ensure smooth, low torque operation, reducing actuator size requirements and manual effort.

Versatile Material Options: We manufacture Intechvalve ball valves with various body materials, ball materials, and seat materials to suit different fluids, pressures, and temperatures.

Wide Industry Use: From oil and gas production, refining, petrochemical plants, power generation, water treatment, to chemical processing and pharmaceutical industries, Intechvalve ball valves provide reliable flow control and isolation.

How It Works – Principle of Operation by Intechvalve

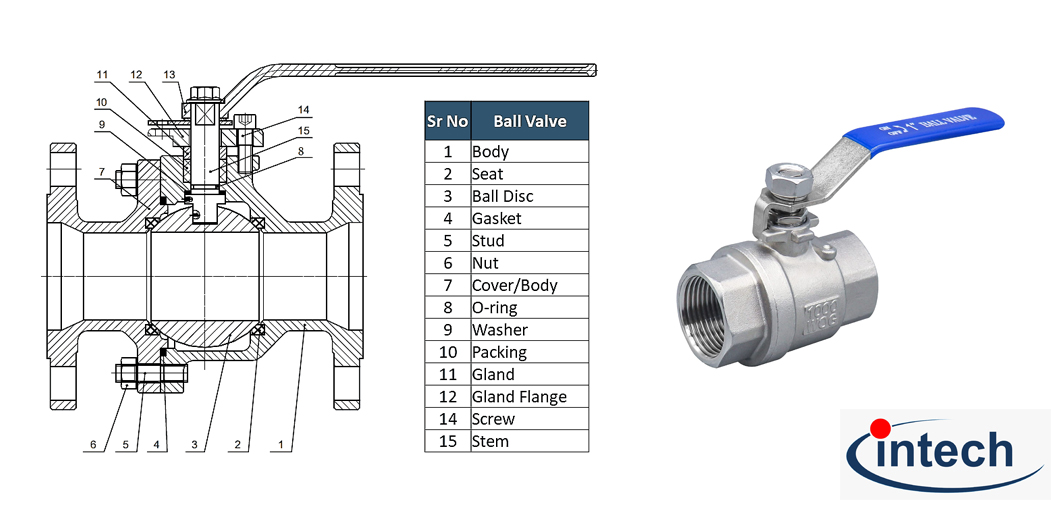

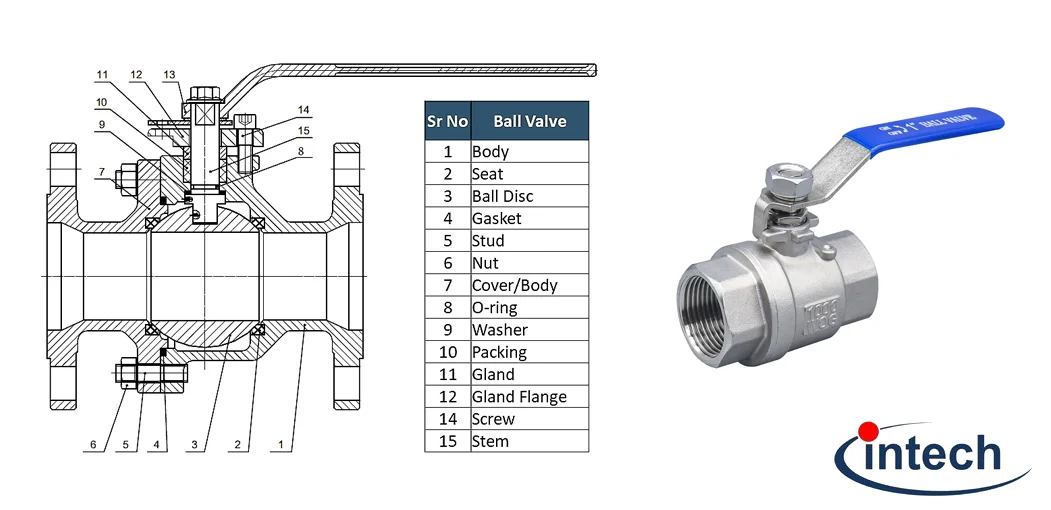

An Intechvalve ball valve operates using a spherical ball with a central bore. The ball is rotated by a stem connected to a handle, gear, or actuator. When the handle is turned 90 degrees, the stem rotates the ball from fully open position, where the bore aligns with the pipeline, to fully closed position, where the solid part of the ball blocks the flow and seals against the seats. In intermediate positions, the ball partially obstructs the flow, providing some throttling capability, though ball valves are primarily designed for isolation rather than precise flow control. The quarter turn design allows for quick operation, while the precision machined ball and resilient seats ensure reliable sealing.

Typical Technical Specifications – Intechvalve Ball Valves

Common Types of Ball Valves manufactured by Intechvalve

• Floating Ball Valve — The ball is suspended between two seats and floats slightly under pressure to create a seal. Intechvalve floating ball valves are ideal for smaller sizes and lower pressure applications up to Class 600.
• Trunnion Mounted Ball Valve — The ball is supported by bearings or trunnions on both top and bottom, reducing operating torque and seat wear. Intechvalve trunnion ball valves are used for larger sizes, higher pressures, and critical applications up to Class 2500 and above.
• Full Bore Ball Valve — The ball bore diameter matches the pipeline inner diameter, allowing unobstructed flow and pigging. Intechvalve full bore ball valves are widely used in oil and gas pipelines.
• Reduced Bore Ball Valve — The ball bore is smaller than the pipeline diameter, resulting in some pressure drop but lower cost and torque. Intechvalve reduced bore valves are economical for many applications.
• Three Piece Ball Valve — Body consists of three pieces, allowing easy removal of the center section for maintenance without removing the valve from the pipeline. Intechvalve three piece ball valves are popular in process industries.
• Top Entry Ball Valve — The ball and seats can be accessed and serviced through a removable top cover without removing the valve from the pipeline. Intechvalve top entry ball valves are ideal for subsea and critical applications.
• Fully Welded Ball Valve — One piece welded body construction eliminates potential leak paths, providing maximum integrity. Intechvalve fully welded ball valves are used for buried service and high security applications.
• Metal Seated Ball Valve — Metal to metal seating for high temperature, abrasive, and severe service applications. Intechvalve metal seated ball valves offer extended service life.
• Cryogenic Ball Valve — Specially designed for extreme low temperature services down to minus 196 degrees Celsius. Intechvalve cryogenic ball valves feature extended bonnets and special materials.
• V Port Ball Valve — Ball features a V shaped notch that provides linear flow characteristics for throttling applications. Intechvalve V port ball valves offer improved control compared to standard ball valves.

Seat and Seal Options from Intechvalve

• PTFE Seat — Standard seat material offering excellent chemical resistance and low friction. Intechvalve PTFE seated ball valves are suitable for most general applications up to 200 degrees Celsius.
• Reinforced PTFE Seat — Glass or carbon filled PTFE for improved mechanical properties and temperature resistance up to 230 degrees Celsius. Available from Intechvalve for higher pressure applications.
• PEEK Seat — High performance engineering plastic for demanding applications up to 260 degrees Celsius. Intechvalve PEEK seats offer excellent mechanical strength and chemical resistance.
• PPL Seat — High temperature performance up to 220 degrees Celsius with good chemical resistance. Intechvalve PPL seated valves are cost effective for many applications.
• Nylon Seat — Good wear resistance and lower cost for general service. Available from Intechvalve for water and non critical applications.
• Metal Seat — For high temperature applications up to 600 degrees Celsius and abrasive services. Intechvalve metal seated ball valves feature Stellite or Tungsten Carbide hard facing.

Use Cases for Intechvalve Ball Valves

• Oil and gas production – Intechvalve ball valves provide reliable isolation in wellhead manifolds, flow lines, and production facilities.
• Pipeline transmission – Full bore Intechvalve ball valves allow pigging and offer minimal pressure drop in transmission pipelines.
• Refining and petrochemical – Our ball valves handle hydrocarbons, chemicals, and high temperature services in refineries.
• Power generation – Intechvalve ball valves are used in fuel systems, cooling water, and auxiliary services.
• Chemical processing – Lined and alloy Intechvalve ball valves handle corrosive chemicals safely.
• Water and wastewater treatment – Cost effective Intechvalve ball valves provide reliable isolation in water systems.
• Pharmaceutical and biotechnology – Sanitary design Intechvalve ball valves meet clean service requirements.
• Marine and offshore – Corrosion resistant Intechvalve ball valves are ideal for shipboard and platform applications.
• HVAC systems – Intechvalve ball valves control water and glycol flows in heating and cooling systems.
• Cryogenic services – Specialized Intechvalve cryogenic ball valves handle LNG, liquid nitrogen, and other cryogenic fluids.

At Intechvalve, we specialize in reliable isolation and flow control. Our ball valves are engineered to provide bubble tight shut off, smooth operation, and long service life across the most demanding industrial applications.
